Plastic injection molding is one of the most widely used manufacturing processes in the production of plastic components, known for its efficiency, repeatability, and precision. This process is essential in industries such as automotive, electronics, medical devices, consumer goods, and industrial equipment. In this article, we will explore the complete process flow of plastic injection molding, from raw material preparation to mold maintenance, helping you understand each critical stage involved in producing high-quality plastic parts.
1. Raw Material Preparation
The first step in the injection molding process is the preparation of raw materials, which directly impacts product quality and production efficiency.
- Material selection: Common thermoplastics used include ABS, PP (Polypropylene), PC (Polycarbonate), PA (Nylon), PE (Polyethylene), and POM (Acetal). Material choice depends on the desired mechanical, thermal, and chemical properties of the final product.
- Granules or powder form: Plastics are typically supplied in pellet or powder form for easy feeding into the injection molding machine.
- Drying and dehumidification: Hygroscopic materials (like nylon or PC) must be dried to a specific moisture content using dryers or dehumidifiers. Moisture can cause defects such as bubbles, splay, or weak weld lines in the molded part.
2. Heating and Melting (Plasticization)
In this stage, the plastic is melted and prepared for injection:
- Feeding via hopper: The plastic pellets are gravity-fed from the hopper into the barrel of the injection molding machine.
- Screw mechanism: A rotating screw conveys, compresses, and melts the plastic inside the barrel. This mechanical motion ensures uniform melting through both heat and shear.
- Heaters: External band heaters or cartridge heaters around the barrel bring the plastic to its melting point (typically 180°C–300°C depending on material).
- Homogenization: The molten plastic must be consistent in temperature and viscosity for precise molding.
3. Injection
Once plasticization is complete, the molten plastic is injected into the mold:
-
Metering phase: The screw retracts slightly to accumulate a precise volume of molten plastic.
-
Injection phase: The screw pushes forward quickly and injects the molten material through a nozzle into the closed mold cavity.
-
High pressure: Injection pressures can range from 700 to 2,000 bar (10,000 to 30,000 psi) to ensure full mold filling.
-
Multi-stage injection (if applicable): Used for complex geometries or thin-walled parts to control flow rate and pressure across multiple stages for optimized part quality.
4. Holding Pressure and Cooling
After injection, the part must be held under pressure and allowed to cool and solidify:
-
Holding pressure: Maintains pressure on the material to compensate for shrinkage and to pack the cavity completely, ensuring dimensional stability.
-
Cooling system: Cooling channels built into the mold circulate water or oil to extract heat. Cooling time is a key factor in cycle time and is affected by factors such as material type, wall thickness, mold temperature, cooling line design, etc.
-
Solidification: The part remains inside the mold until it is rigid enough to be ejected without deformation.
5. Mold Opening and Demolding
Once the part is fully cooled:
-

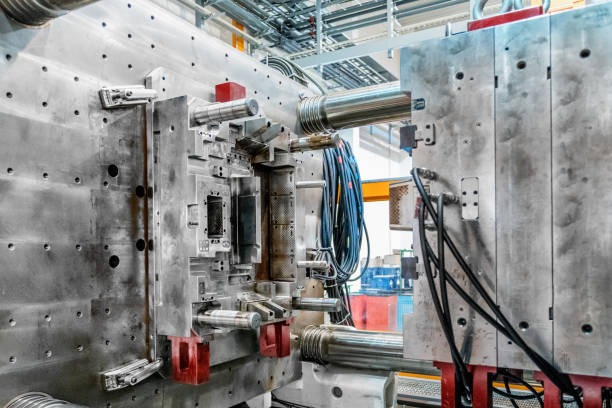

Mold separation: The injection molding machine opens the mold by separating the two halves (core and cavity).
-
Ejection system: The molded part is pushed out using ejector pins, ejector sleeves, or compressed air.
-
Post-molding processes include Trimming flash, Gate removal, Surface finishing, Ultrasonic welding, Assembly with other components, etc.
6. Quality Inspection
To ensure product reliability and customer satisfaction, rigorous quality control is necessary:
-
Visual inspection: Checks for cosmetic issues like scratches, burn marks, short shots, or sink marks.
-
Dimensional inspection: Using calipers, micrometers, or CMMs (coordinate measuring machines) to verify tolerances.
-
Functional testing: Ensures mechanical, thermal, or electrical performance depending on the application.
-
Defect classification: Common defects include Warpage, Flow lines ,Weld lines, Voids, Flash.
7. Packaging and Logistics
-
Batch labeling: Each batch is labeled with traceability data including material lot, machine ID, and production date.
-
Packaging: Molded parts are packed in protective containers, sometimes with anti-static or moisture-proof measures depending on requirements.
-
Storage or shipment: Ready-to-ship products are sent to warehouses, customers, or forwarded for secondary processing.
8. Mold Maintenance and Management
Proper mold care is essential for consistent quality and long tool life:
-
-
Routine cleaning: Mold surfaces are cleaned to remove residue, build-up, or rust.
-
Inspection: Mold components such as ejector pins, guide pillars, cooling lines, and vents are regularly checked.
-
Preventive maintenance: Scheduled activities help avoid unplanned downtime and maintain mold precision.
-
Repair or replacement: Worn or damaged components are refurbished or replaced to maintain part accuracy.
-
The plastic injection molding process is a complex yet highly optimized sequence of steps that enables mass production of high-quality, consistent, and precise plastic parts. From raw material preparation and melting to injection, cooling, and post-processing, each step plays a critical role in the final product outcome.
Understanding the full injection molding workflow not only helps manufacturers optimize efficiency and reduce waste but also ensures better collaboration between engineers, designers, and production teams.
